HOW IT WORKS
From Drawing to Delivery—We Make It Simple.
One Source. One Process. Total Confidence.
At WESTERN SEPARATIONS™, we streamline the process of getting the custom filtration and separation parts you need. Whether you're submitting a detailed CAD drawing or sending us a sample, we handle every step—from spec review to final delivery—with precision and care.

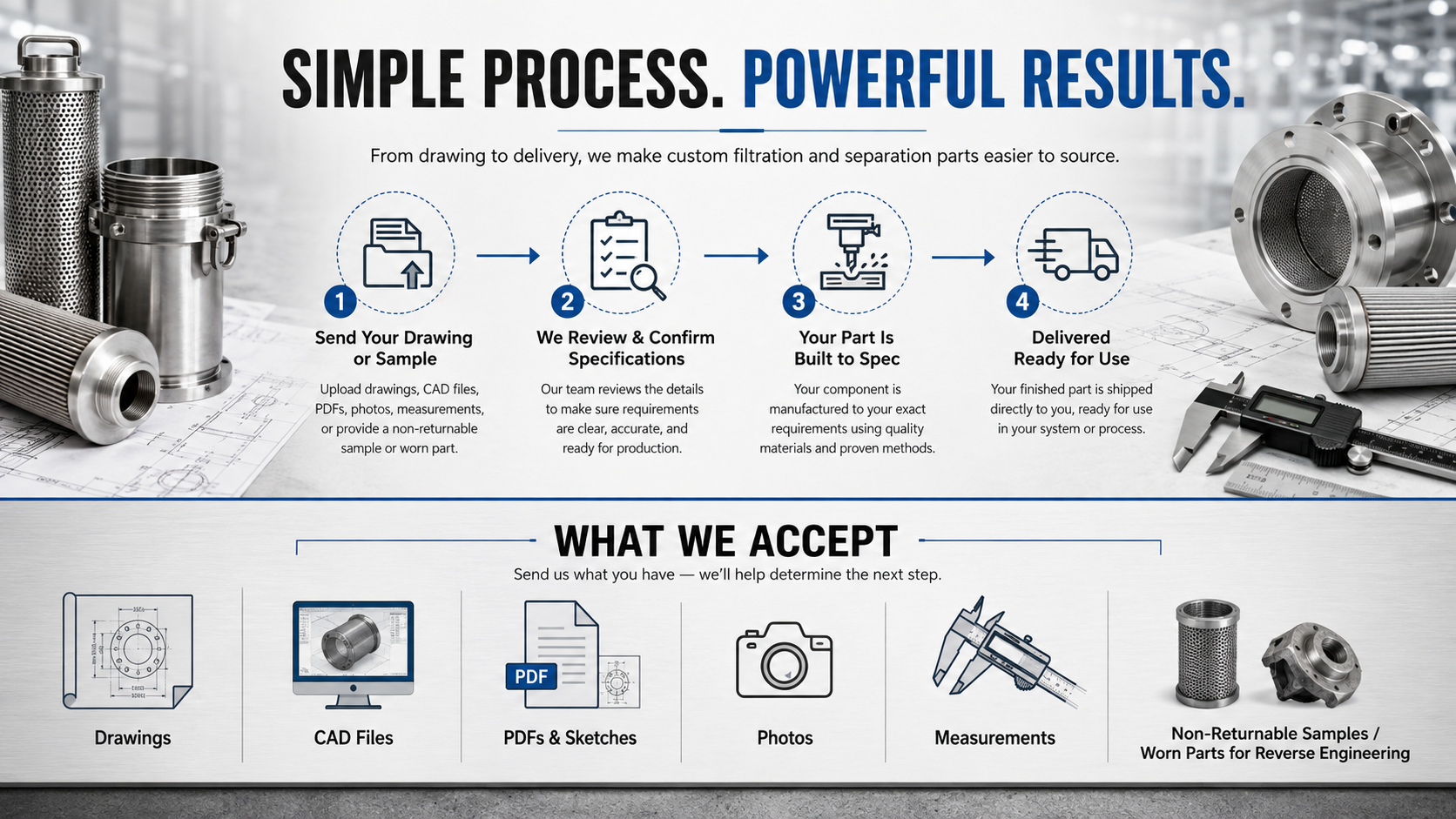

Step-by-Step Process
➤ 1. Send Your Drawing or Sample
Upload your drawing in any format—or send us a non-returnable sample of the part you need duplicated or created.
➤ 2. We Review & Confirm Specs
We carefully evaluate the details, confirm dimensions and requirements, and get your approval before anything moves forward.
➤ 3. Your Part Is Created to Exact Requirements
Your component is built to spec using trusted methods and high-performance materials to ensure reliability and repeatability.
➤ 4. Delivered Directly to You
Once your part is complete, we ship it directly to your site—ready to install and perform.
What We Accept
CAD files (.DWG, .DXF, etc.)
PDF or scanned drawings
Non-returnable physical samples
Photos or measurements (case-by-case)
Duplication Available
Need to Replace a Hard-to-Find Part?
We offer duplication services for obsolete or custom components. Send us a sample or drawing, and we’ll recreate it with precision.
Ready to Get Started?
Upload your specs or sample today. We’ll take it from there.
